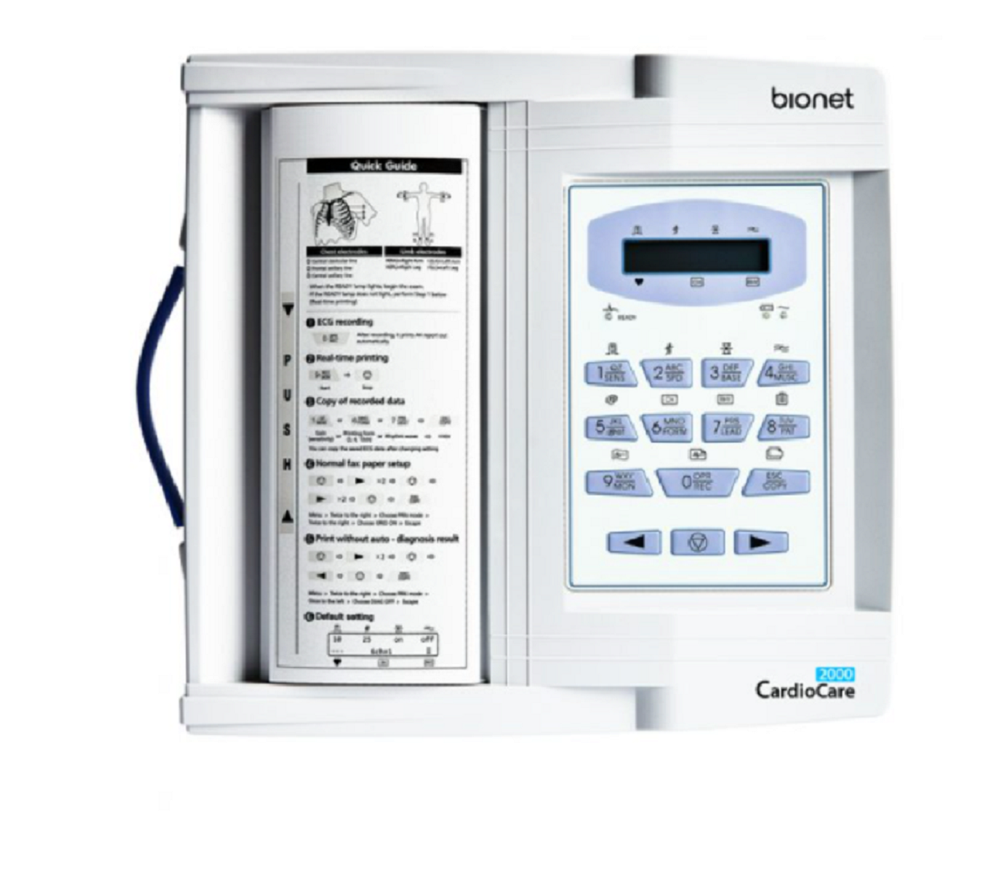

Number Of Channels 12 Channels Model Name/Number Cardio care 2000 Machine Type Digital Recording Speed 50 mm/s Digital Display Yes Operating Mode Automatic Battery Operating Time 1 Hour Weight 2.98 kg Sensitivity 10 Accessories User Manual And Warranty Card, Patient Cable, Power Cord Brand Bionet Display 2 x 16 Character LCD Display Size 296 (w) x 305.5 (h) x 92.5 (d) mm Power Consumption 60 W Safety Class 1, Type BF Communication PC Connection with RS-232 interface and LAN Product Feature Simultaneous 12 Channel Resting ECG ECG Interpretation Program A4 Full-Size Paper Low Maintenance Cost ECG Filing System BMS-Plus Upgradeable Software FeatureSpecificationECG Leads10 lead 12 channel simulataneous 10-second resting ECGDimension296 (w) x 305.5 (h) x 92.5 (d) mmApproximately 2.98 kgRecording Channel3, 6, 12 channel and 1 channel (60 sec)Sensitivity5, 10, 20 auto (I~aVF: 10, V1~V6:5) mm/mVPrinting Speed12.5, 25, 50 mm/sFiltersAC (50/60 Hz, -20dB or better)Muscle (25~35Hz, -3dB or better)Base Line Drift (0.1Hz, -3dB or better)Low pass filter (off, 40Hz, 100Hz, 150Hz)Display2 x 16 character LCD displayLCD DisplaySensitivity, speed, filter status, HR, printing form, rhythm leadLED IndicatorSignal quality, power source, batteryKeyboardMembrane keyboardAlphanumeric and symbol availablePatient DataID, name, age, sex, height, weightBasic MeasurementHeart rate, PR, QRS, QT/QTc, P-R-T axisRecorderThermal print head, thermal roll paperReport papers:-Width: A4: 210mm or 8.5"-Length: A4: 300mm or 11"Effective writing width: 204mmResolution:- Vertical: 8 dots/mm- Horizontal: 16 dots/mmElectricalInternal noise: 20uV(p-p) maxInput circuit: Floating inputIsolated and defibrillation protectedInput impedance: >10MQInput range: > +/- 5mVCommon Mode Rejection: > +100dBDC offset voltage: > +/- 300mVTime constant: 3.2 secPatient leakage current:Frequency response: 0.05~150HzSignal Quality ControlDisconnected lead detectionPowerPower Supply: AC or built-in Battery (option)Power requirement: 100 - 240 Vac, 50/60Hz, 1.0 - 0.5APower consumption: 60w maxBattery Capacity1 hour of normal use (approximately 100 automatic ECG printouts)CommunicationPC connection with RS-232 interface and LANSafetyClass 1, Type BFConformityCE, CSAEnvironmentOperating humidity: 30~85%Operating temperature: 10° ~40° CAtmospheric pressure: 70 ~ 106 KPaStandard AccessoriesPower Cable - 1 ea
